Product Number

  •
  • 30112800

Type

  • Scale
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/10th
  • Brushless
  • Sensored
  • No

Specifications

  • Cont./Peak Current
  • Input Voltage

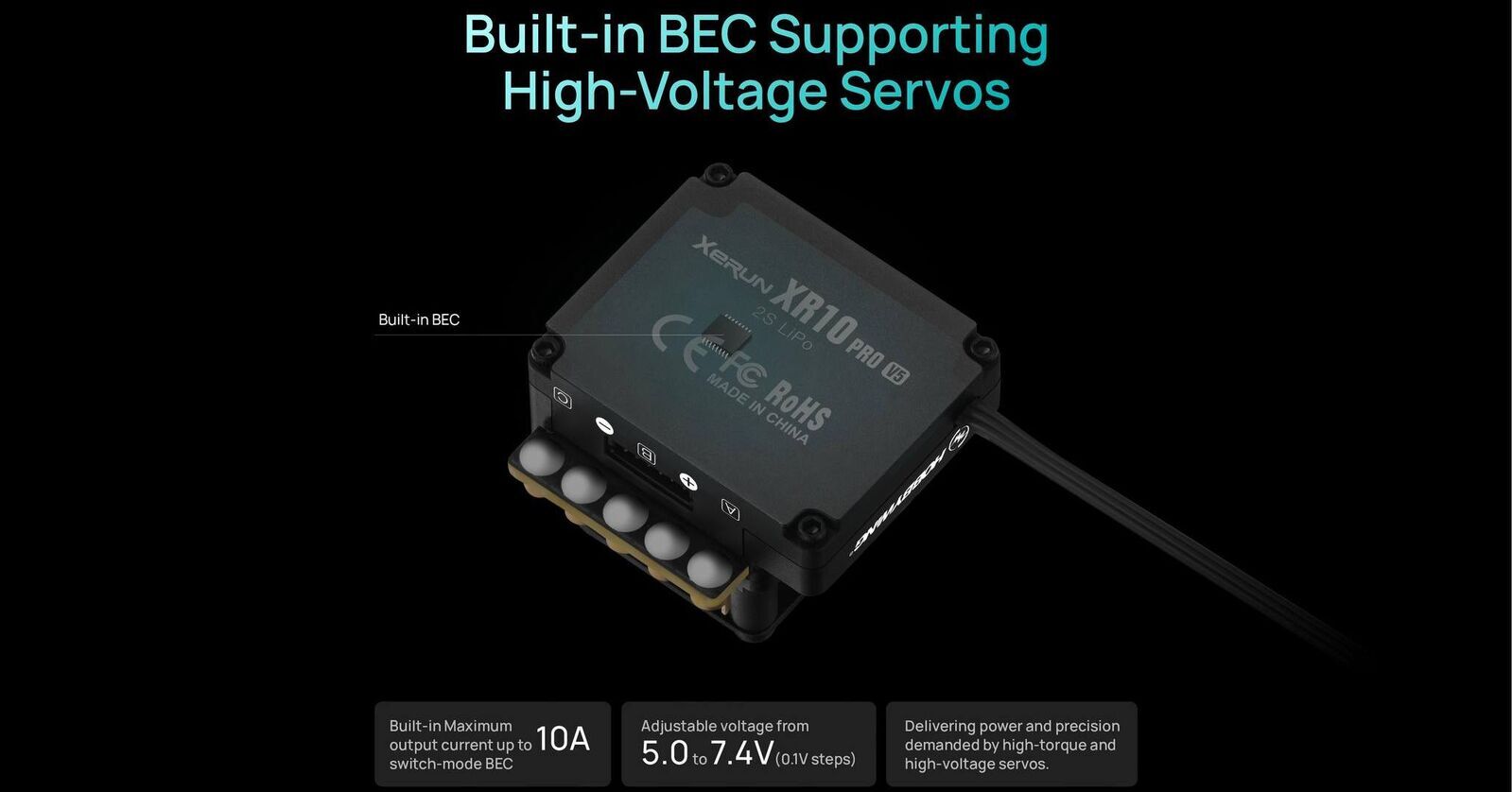

  • BEC Output
  • 150A/1000A
  • 2S LiPo
  • 5V-7.4V,5A

Wires & Connectors

  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Black-13AWG-200MM*2
  • Black-13AWG-200MM*3
  • No
  • No

ESC Programing via

  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO

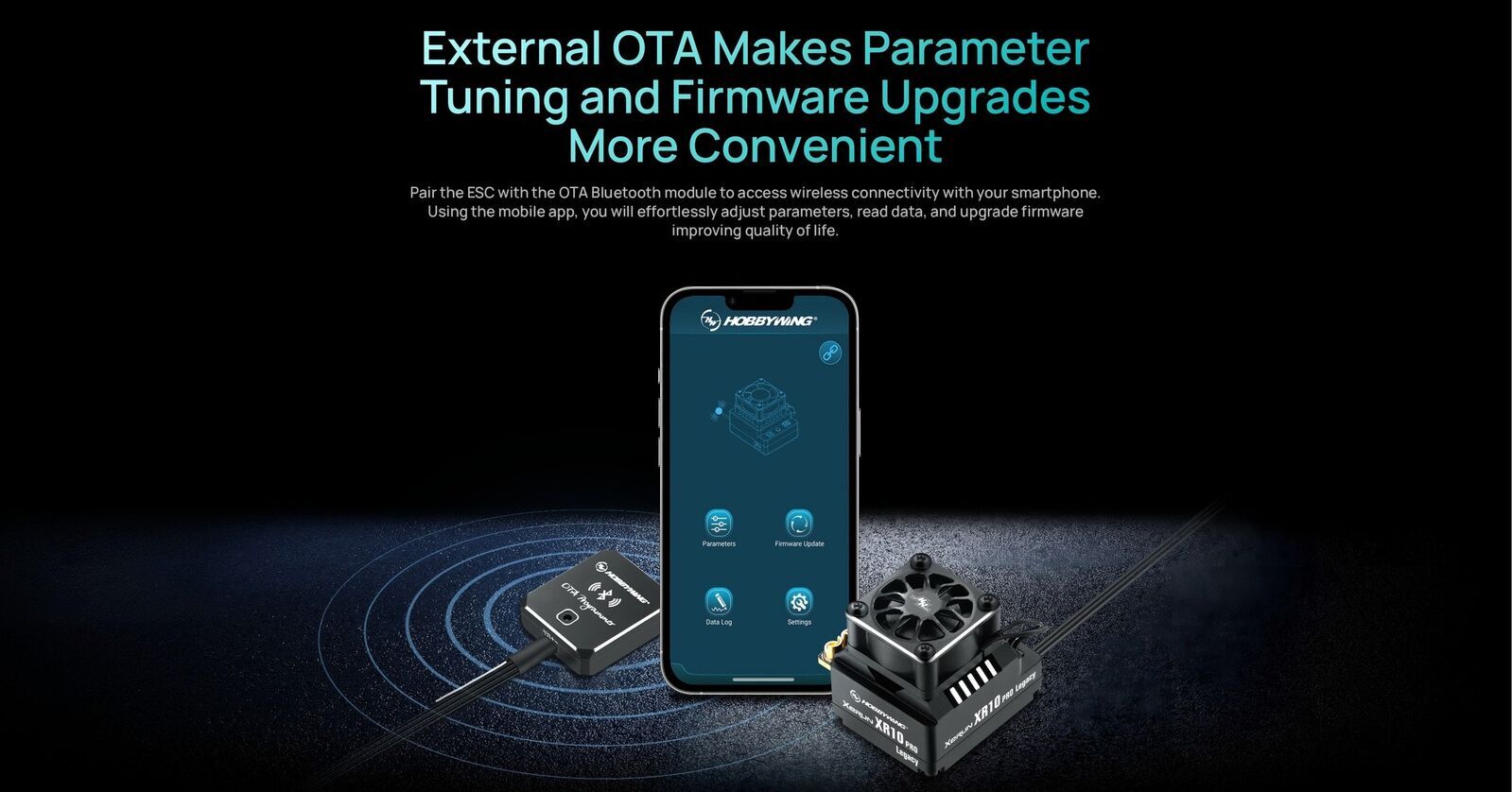

  • OTA Programmer
  • Program Port
  • Not Supported
  • Not Supported
  • Supported
  • Supported
  • Supported
  • Independent program port

Data Recording

  • Extreme value

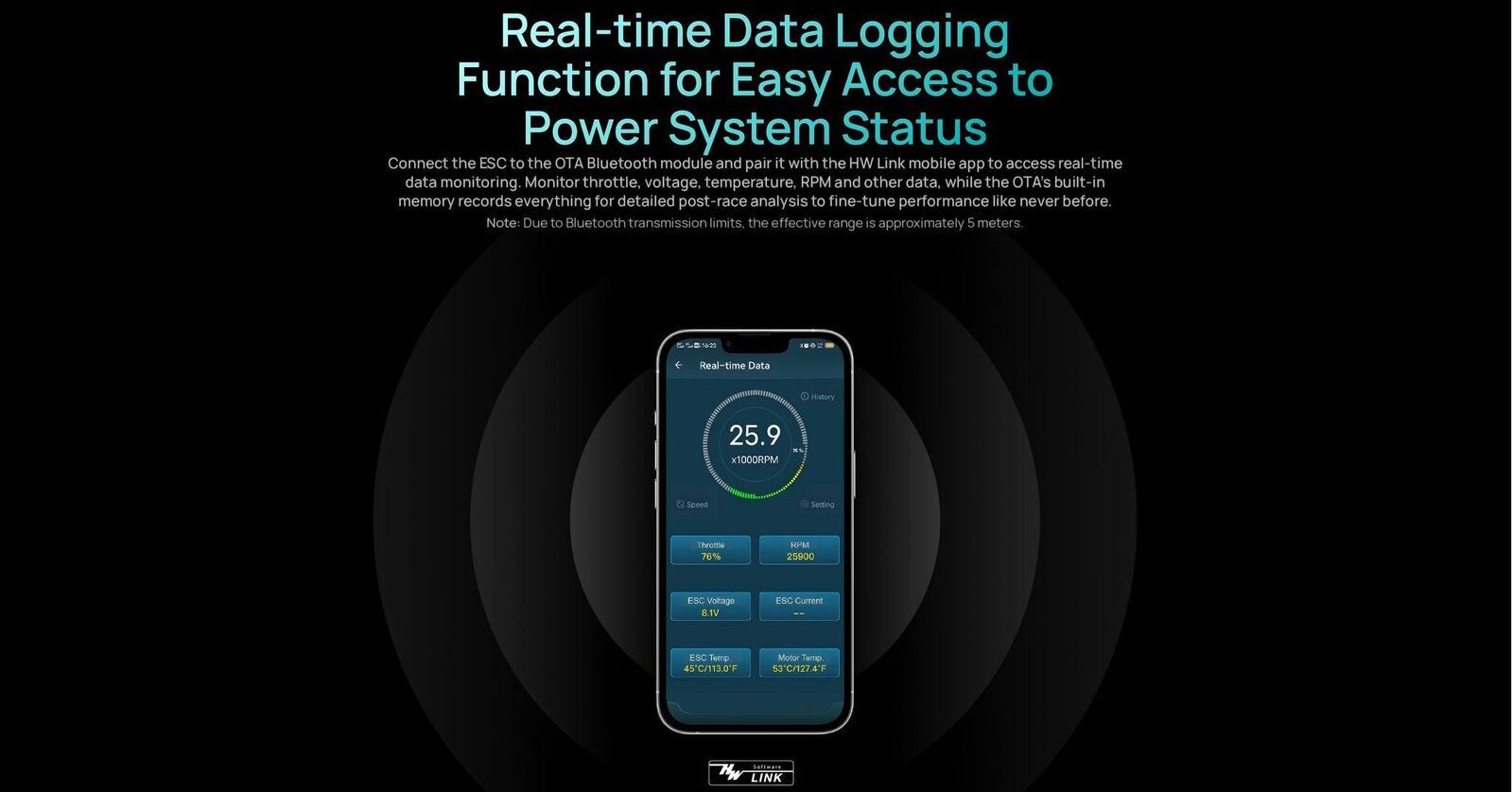

  • Real-time Data
  • Historical data (Graph)
  • Supported
  • Supported
  • Supported

Firmware

  • Firmware Upgrade
  • Supported

Size & Weight

  • Size
  • Weight
  • 37.7*37.0*33.2mm
  • 94.2g( Included wires & connectors)

Applications

  • Motors
  • Vehicles
  • KV Rating/T Count
  • Sensorless Brushless/Sensored Brushless Motor
  • 1/10th On-Road/Off-Road Racing,1/10th Drift/F1/Rally
  • 3650 (540) size 2-pole motor, On-Road ≥ 4.5T≥ Off-Road ≥ 5.5T

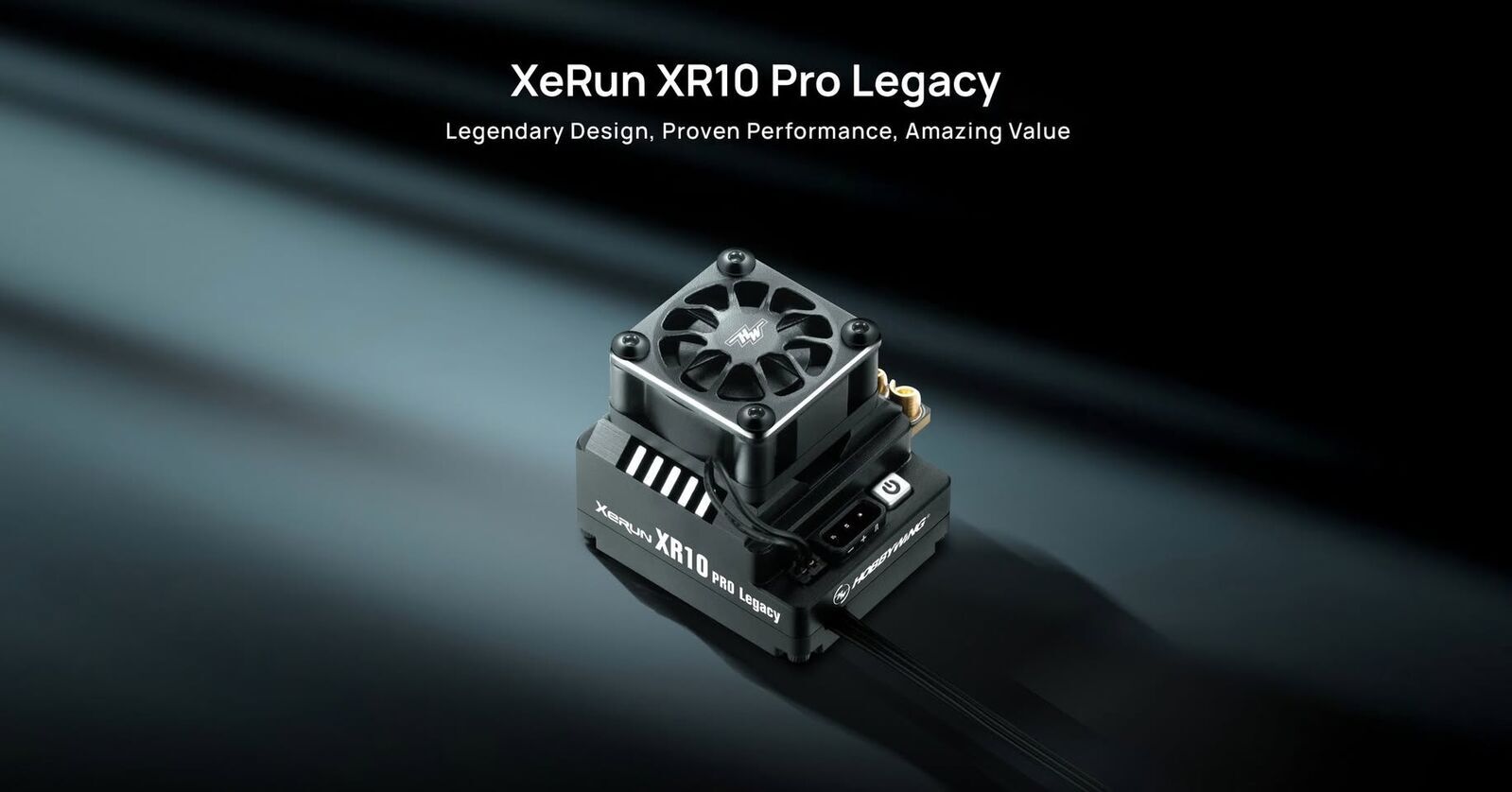

(HW30112800)

SKU HW30112800
Brand HOBBYWING
