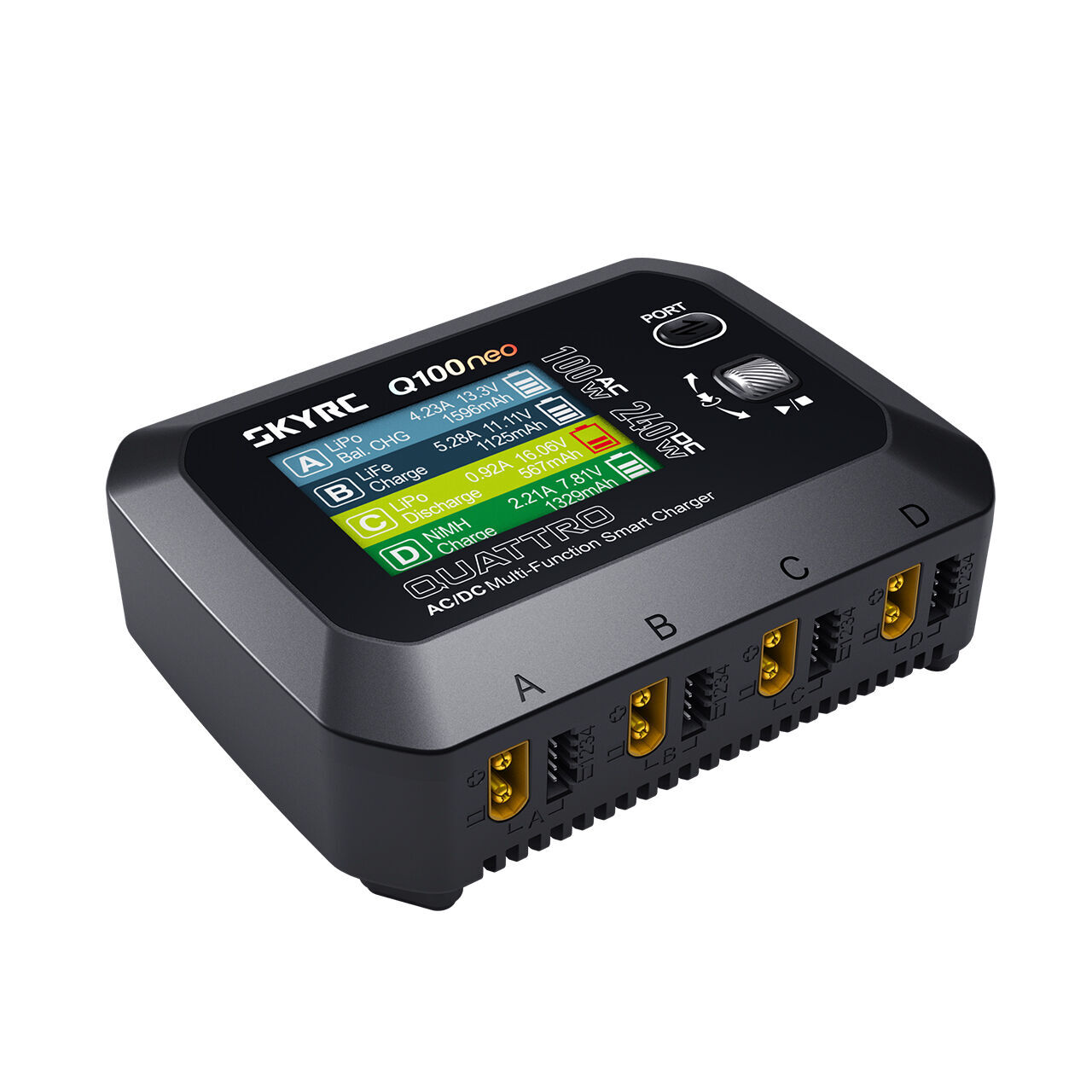

roduct information "SkyRC Q100 Neo LiPo 1-4s 6A 100W AC Charger"

The SkyRC Q100 Neo redefines charging performance compact, powerful, and equipped with four intelligent outputs for maximum flexibility. With a total power of 240W DC and 100W AC, the Q100 Neo is ready for any challenge whether in RC racing, FPV flying, or drone soccer.

Each of the four outputs operates independently, allowing different battery types to be charged simultaneously. From LiPo and LiHV to NiMH, NiCd, LiFe, Li-ion, and Pb the Q100 Neo is a true all-rounder.

The intelligent power management system dynamically distributes available power among active ports. Once one channel completes charging, the remaining power is automatically redirected to the other outputs, reducing overall charging time and ensuring every watt is efficiently used.

The integrated balance port also enables faster discharging up to 15W when used together with the main output, compared to 5W via the main port alone. This makes the Q100 Neo not only an outstanding charger but also an excellent discharger and diagnostic tool.

Specifications:

Input Voltage: AC: 100240 V
DC: 1030 V
Charging Power (DC): max. 240 W (4 × 60 W, dynamically distributed)
Charging Power (AC): max. 100 W
Charge Current: 0.1 6.0 A
Balance Current: max. 600 mA
Discharge Power: 5 W (Main Port)
10 W (Balance Port, LiPo/4S)

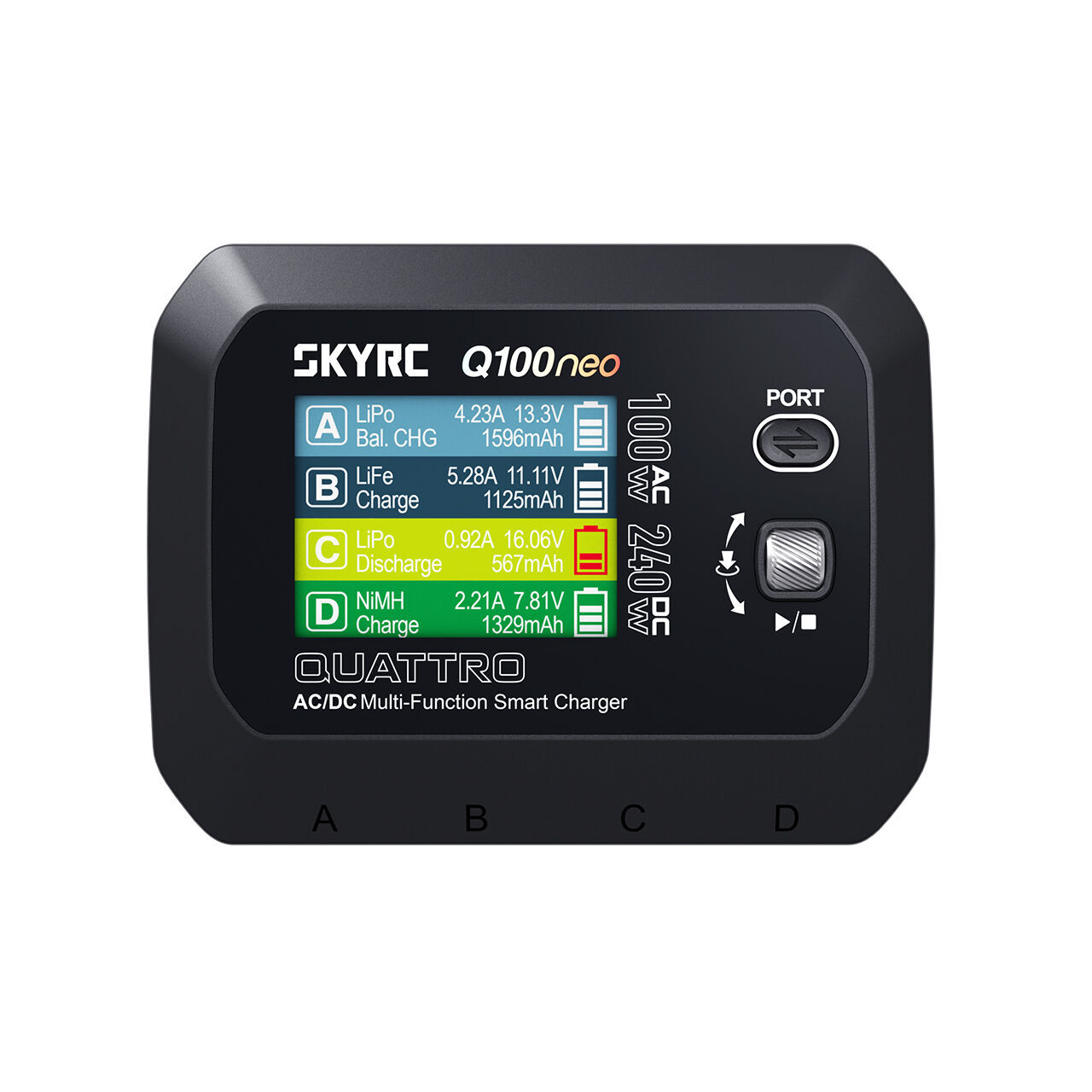

Display: 2.8'' color display, 240×320 px, 262k colors
Battery Types: LiPo/LiFe/LiIon/LiHV: 14S
NiMH/NiCd: 18S
Pb: 3S / 6S
Dimensions: 140 × 108 × 43.5 mm
Weight: approx. 491 g

(SK-100223)

SKU SK-100223
Brand SKYRC
