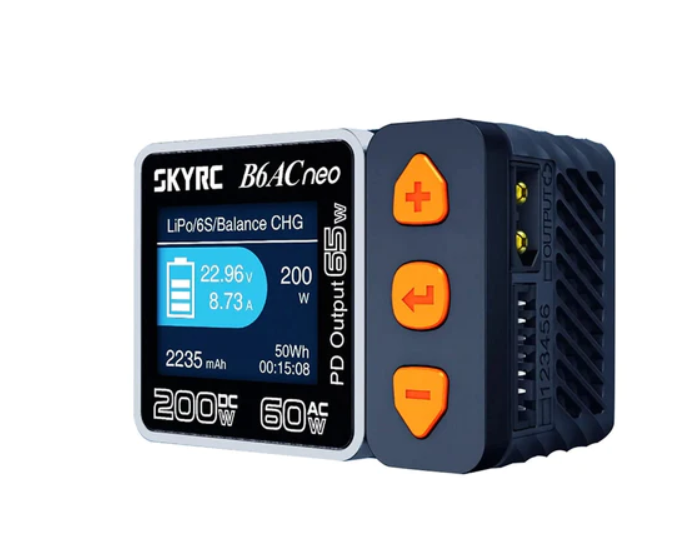

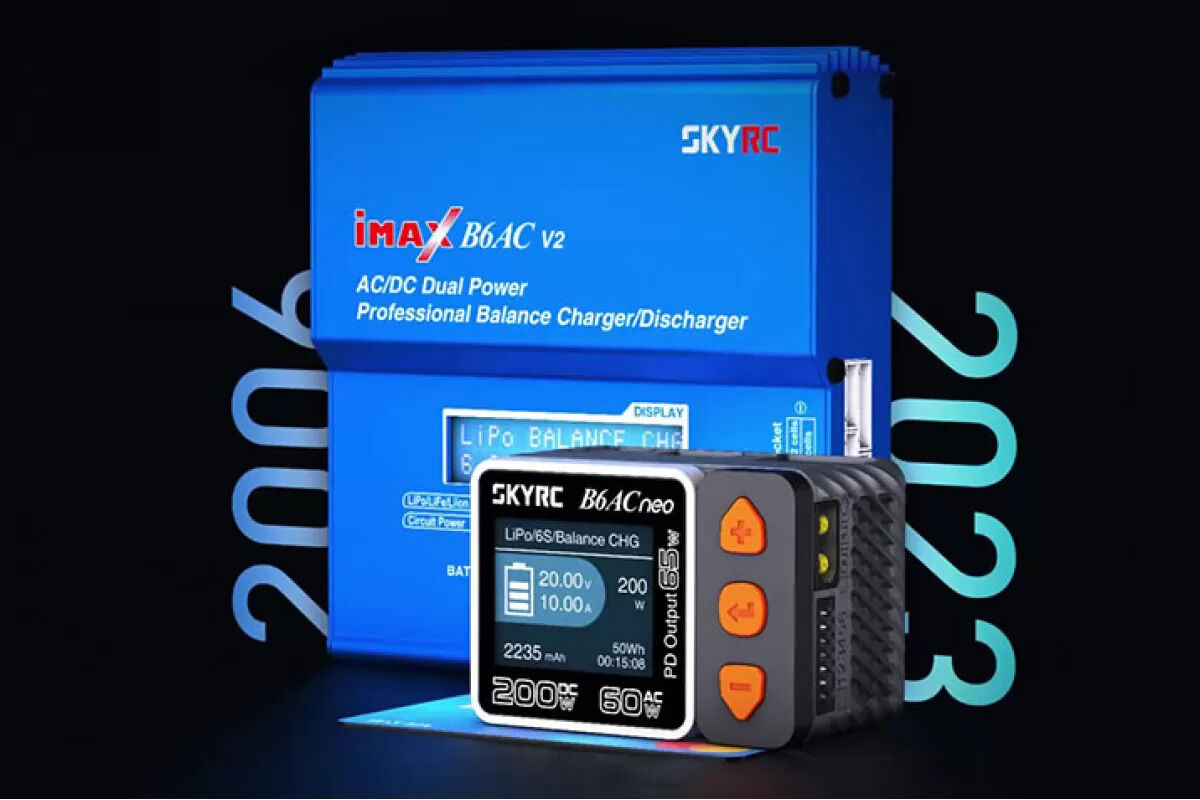

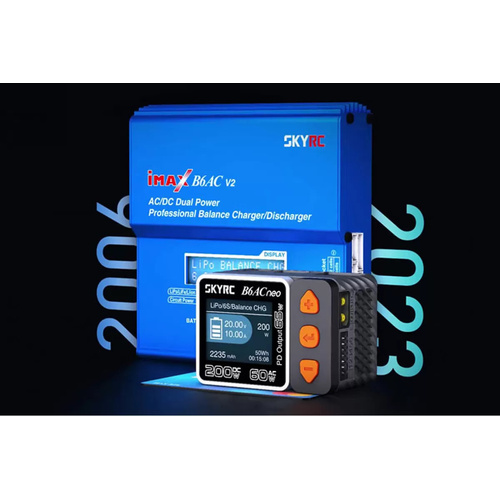

The legendary SkyRC iMax B6AC, an iconic charger of 2006, has a successor: the B6ACneo.

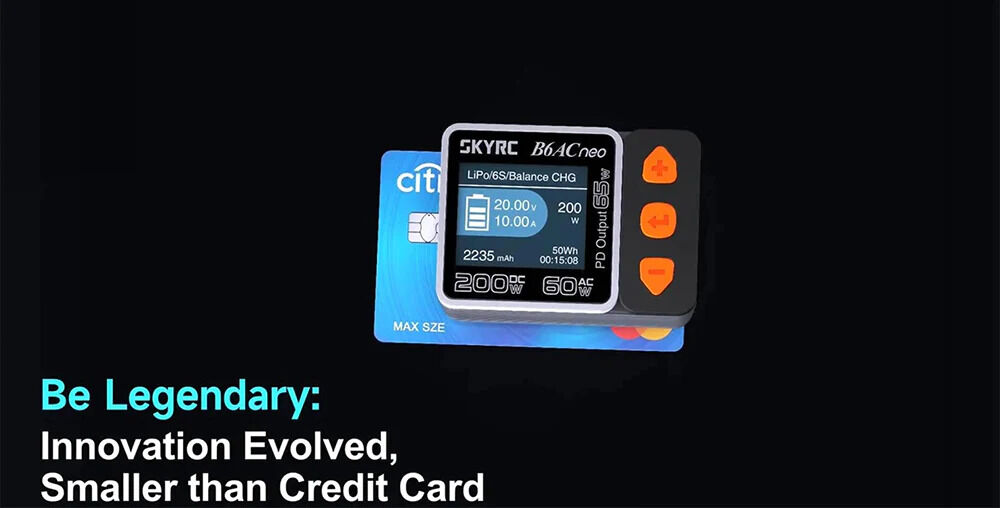

At almost a quarter the size of its predecessor and smaller than a credit card, the B6ACneo packs a powerful punch. Gone is the rugged aluminium case of the B6; the B6ACneo boasts a sleek plastic case in a range of stunning colour schemes. Powered by AC, the B6ACneo charges at an impressive 200W, a significant upgrade over the B6's 50W limit. USB PD input, a must-have feature in today's homes, is also supported, allowing for up to 80W charging. SkyRC has once again raised the bar for RC charging! Don't let its compact size fool you – this charger is no lightweight. When plugged into an AC outlet, it delivers a remarkable 200W charging power with a maximum current of 10A. And even when connected to a trendy Type-C PD power source, it effortlessly delivers up to 80W. With its tiny footprint, the B6ACneo exceeds expectations in every way. Experience the ultimate combination of power and portability with the B6ACneo.



What more could you ask for from such a compact powerhouse?




Specifications

  • Size & Weight:
  • Shell material: PC-ABS V0
  • Size: 70*50*42mm
  • Weight: 150g

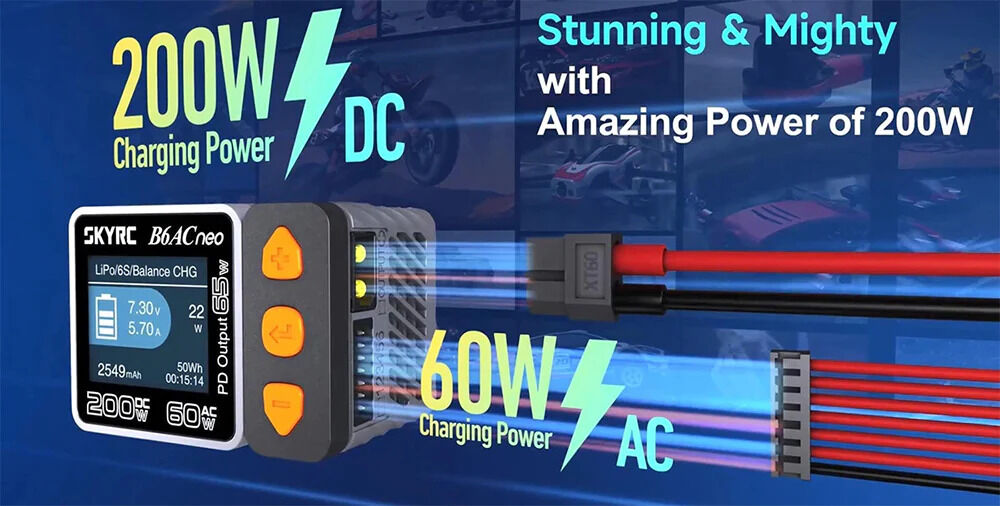

  • Charger power:
  • DC: 200W
  • AC: 60W
  • QC3.0 / PD: 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W

  • Power:

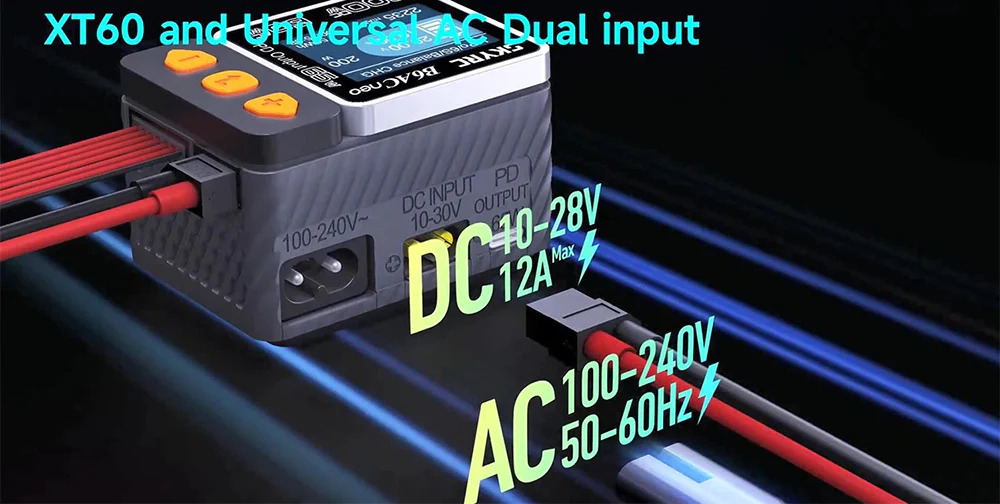

  • DC Input Voltage: 10-30.0V
  • AC Input Voltage: 100V - 240V 50/60Hz

  • Operation:
  • LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
  • NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
  • Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge
  • Charge and Discharge:
  • Charge current: LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.2-10.0A
  • Discharge current:LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.1-2.0A
  • Balance current: LiPo/LiFe/LiIon/LiHV: Max. 500mA

  • Battery:
  • LiPo/LiFe/LiIon/LiHV: 1-6cells
  • NiMH/NiCd: 1-15cells
  • Pb: 3S/6S

  • Discharge power:

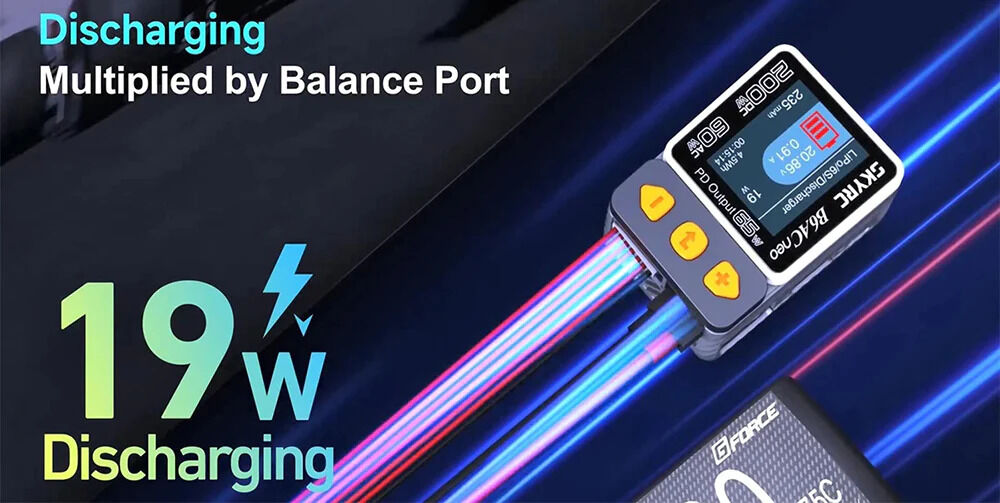

  • Max. 19W based on 6S(4.2V/S)

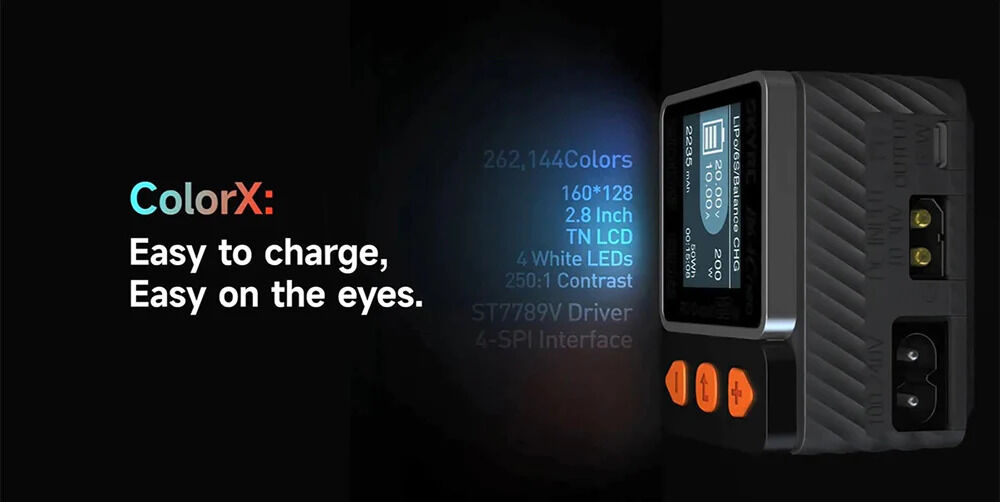

  • Display:
  • Display Type: TN
  • Size: 1.77 inch
  • Panel Active Area: 28.03*35.04mm
  • Resolution: 128xRGBx160 Pixel
  • Number of Colours: 262K

(SK-100200)

SKU SK-100200
Brand SKYRC
