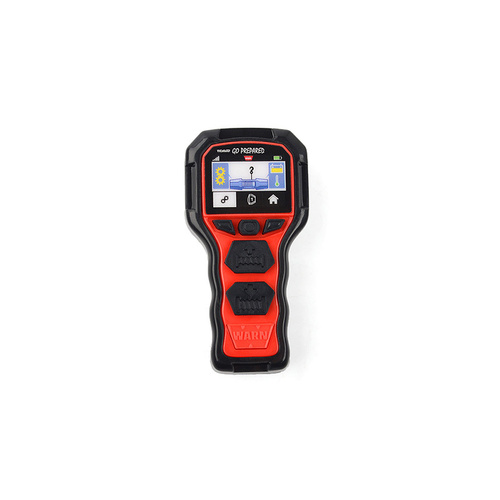

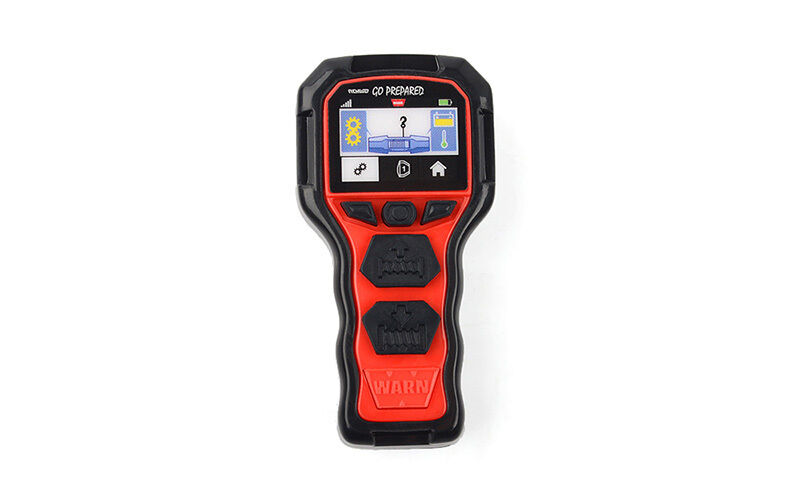

RC4WD Warn 1/10 Advanced Wireless Remote/Receiver Winch Controller Set





This is the all-new RC4WD Warn 1/10 Advanced Wireless Remote/Receiver Winch Controller Set. It is Officially Licensed by Warn Industries and features an On/Off switch with LED indicator, lanyard strap, and a 1:1 detailed remote design with rubber buttons for improved operation. It is exclusively available on RC4WD.com and our partnered dealers.





Specifications:



Remote

  • Over 50ft Range
  • Batteries Included
  • Total Length: 2.10in / 53.5mm
  • Total Width: 1.06in / 27mm
  • Height: 0.59in / 15mm
  • Weight: 0.49oz / 13.9g
  • On/Off Switch



Receiver

  • Small Compact Size
  • Operating Voltage 6V to 11.1V
  • Easy Plug and Play
  • Instruction Included
  • Length: 1.6in / 40.4mm
  • Width: 1.2in / 30.2mm
  • Height: 0.37in / 9.4mm
  • Weight: 0.5oz / 14g



Wires

  • Length: 6.0in / 150mm
  • Wires Weight: 0.14oz / 4g



Lanyard

  • Total Length: 7.24in / 184mm
  • Weight: 0.14oz / 1.8g



Product

  • 30 Day Warranty
  • Designed and Manufactured by RC4WD



















Shown installed with RC4WD 6-Cell 3000mAh NIMH Battery Pack (Z-E0092) and RC4WD 1/10 Warn 9.5cti-s Winch (Z-E0119) for example (Not Included)







What's Included:

  • 1x WARN 1/10 Wireless Remote
  • 1x Wireless Receiver Unit
  • 1x 6" Battery/Receiver Power Wire
  • 1x 6" Receiver/Winch Control Wire
  • 1x Lanyard
  • 1x Warn Decal Sheet



Optional Parts:



Instruction Manual:



Notes:

  • For Warnings, Precautions, Safety and Damage Limits: Click Here
  • This Receiver on this product is waterproof but the Controller is not. You may be able to waterproof on your own but this will void the manufactures warranty.
  • Tampering with this product in any way would result in voiding the warranty.
  • Binding process can take 3-5 seconds.
  • Some LiPo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery. Use a BEC if needing to use a 3 cell LiPo.
  • The remote comes with a 3V CR2025 button cell.


Warn and the Warn name are registered trademarks of Warn Industries. The Warn logo is property of Warn Industries and used under license to RC4WD.

(Z-E0130)

SKU Z-E0130
Barcode # 639302611456
