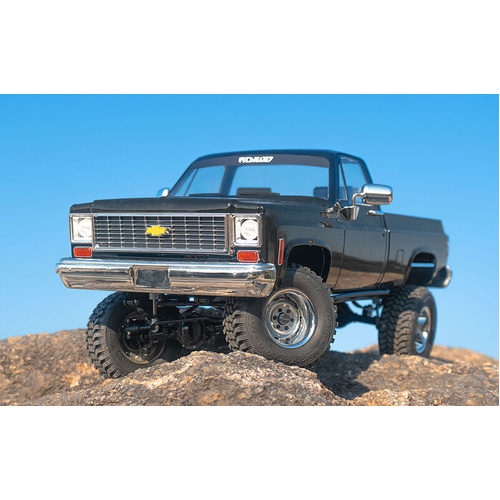

RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)





Take a trip down memory lane with the RC4WD Chevrolet K10 Scottsdale Hard Body Complete Set! This stunning 1/10 scale replica captures the iconic details of the Scottsdale trim level found on K10 trucks from the 70s! Now available in two premium painted colorways, Red and Black!

Featuring a molded drop bed, functional tailgate, molded interior, an opening hood, two interchangeable grills, and a V8 engine bay, this model comes packed with scale details! Under the hood, the engine bay features a dress-up kit and premium additions.

The Trail Finder 2 LWB chassis has an industry 12.3’' wheelbase and comes loaded with an R3 Single Speed Transmission, 540 45T Crawler Brushed Motor, Lift Blocks, RC4WD Ultimate Scale Shocks, and Outcry III Waterproof ESC, providing trustworthy performance! For a smoother ride, this setup comes equipped with our Super Soft Leaf Springs, two installed in each corner, and extra leaf springs in the parts bag to fine-tune your suspension needs!

1/10 Chevrolet K10 Scottsdale Hard Body Complete Set
Chevrolet Blazer Chrome Front Grille w/ Optional Inserts
Small Block V8 Engine Bay for Chevrolet Blazer and K10 w/ Dress Up Kit
Rally 1.9" Beadlock Wheels (Silver)
RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires
K44 Ultimate Scale Cast Axles (XVD)
Super Scale 70mm White Shocks w/ Internal Springs
Super Soft Flex Leaf Springs for TF2
540 Crawler Brush Motor 45T
R3 Single Speed Transmission
Center Mounted Hammer Transfer Case
Twister High Torque Metal Gear Digital Servo
Outcry III Waterproof Esc
6-Cell 3000mAh Battery w/ XT60 Plug
RC4WD Marlin Crawler Side Plastic Sliders for TF2 LWB
Front Inner Fender Set
XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
Universal Nimh Peak Battery Charger







Hammer Transfer Case

Ratio: 1.47:1

Gears: Wide .8 Mod Hardened Steel Gears

Features: 8 Bearings, Cast Casing, Hardened Gears



R3 Scale Single Speed Transmission

Ratios: Pinion/Spur 14/64 = 1:4.57

Internal Ratio: 1.78:1

Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch



K44 Ultimate Scale Cast Axles

Ratio: 2.67:1

Hex To Hex Width: 177mm (6.96")



Shock Absorbers

Super Scale 70mm White Shocks with Internal Springs



Wheels

Type: Rally 1.9" Beadlock Wheels (Silver)

Hub: 12mm Hex

Width: 1.29in / 33.0mm

OD: 2.14in / 54.0mm



Tires

Type: RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires

Outer Diameter: 100.0mm (3.9")

Width: 42.0mm (1.65")

Inner Diameter: 48mm (1.89")



TF2 Truck Dimensions

Wheelbase: 312mm (12.3")

Width: 220mm (8.7")

Height: 238mm (9.4")

Ground Clearance: 61.6mm (2.4")

Final Drive Ratio: 31.9:1



DRIVETRAIN



The R3 Single Speed Transmission comes with a tough cast metal case and wider gears for durability and a Delrin Spur with Slipper Clutch for performance. It also features a sturdy billet aluminum motor mount for added toughness.



The Trail Finder 2 "LWB" Chassis includes the Hammer Transfer Case that features a cast metal exterior and heavy-duty .8 Mod Widened Gears, ensuring lasting functionality.



Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 "LWB" Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.



The most scale-accurate axles on the market, the K44 Ultimate Scale Cast Axles feature high steer knuckles, XVDs, lower mounting points, and a compact offset front pumpkin.



The driveshafts found on the Trail Finder 2 "LWB" Chassis feature heavy-duty uni-joint metal shafts for great driveline angles and durability on the trail.













SUSPENSION



The Trail Finder 2 "LWB" Chassis has a multi-purpose, molded fuel cell that serves as an electronics storage box and provides additional RC realism by storing away any protruding wires.



The Trail Finder 2 "LWB" Chassis includes Super Scale 70mm White Shocks with Internal Springs. These ultimate scale shock absorbers offer realistic looks and ultimate performance. They are machined from billet aluminum with internal springs and are customizable. Drawing on the success of the RC4WD MOA Gear Sets, the Trail Finder 2 "LWB" Chassis has the most durable gears RC4WD has to offer, capable of staying on the trail day after day.



With strength in mind, the ladder frame design of the Trail Finder 2 "LWB" Chassis is made with CNC machined, billet aluminum and comes with scale shock hoops, a chassis servo mount, and transmission and transfer case mounts.



This truck includes a set of Rally 1.9" Beadlock Wheels (Silver). The wheels are stamped steel and have a smooth silver finish with a chrome beauty ring for extra detail.



Every RTR needs a tough set of tires to hit the trails and the included RC4WD BFGoodrich Mud Terrain KM 1.9" Scale Tires deliver the perfect amount of traction with its advanced X2 soft and sticky compound. The scale details complete the look in just the right size.











DETAILS


Get the look you want with 2 Interchangeable grille options that mimic the classic front style of Chevy trucks from the '70s and allow for extra user customization!



The Chevrolet K10 Scottsdale Hard Body is constructed of durable hard plastic with a classic shape that replicates the full-size model with accuracy and authenticity.



The Chevrolet K10 Scottsdale Hard Body features a molded, realistic drop bed and an opening hood and tailgate. The masters of scale are unmatched when it comes to details.



The Chevrolet K10 Scottsdale Hard Body set includes an improved dashboard with preinstalled, super-scale interior decals and door panels.



Included are Chrome-plated parts and colored lenses for all signal lights! Straight out of the box, an LED light set comes professionally installed and out of sight, keeping that realistic look.











ELECTRONICS



The Trail Finder 2 "LWB" Chassis includes a high-quality XR3 3 Channel 2.4Ghz Radio System. Expanding user experience, this radio system comes with a total of three radio channels!



The Trail Finder 2 "LWB" Chassis is powered by the tough and durable RC4WD 45 Turn Crawler Motor. With long-lasting performance at its core, this power machine is tuned for rock climbing and scale driving!



Included is the popular RC4WD Outcry III Waterproof ESC Brushed Speed Controller, with built-in drag brake, for reliable constant power on demand at any time.



With a massive 277.6oz@6V of torque and a full metal geared drivetrain, the RC4WD Twister Metal Gear Digital Servo has the power and performance needed to outmaneuver and overcome tough terrain.



It's ALL in the box! Everything you need is provided to get you on the trails today!





























What's Included:

  • 1x RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black)

(Z-RTR0067)

SKU Z-RTR0067
Brand RC 4WD
