Product Number

  •
  • 30110001

Type

  • Scale
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/16th、1/18th
  • Brushless
  • Sensorless
  • Waterproof

Specifications

  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 30A/100A
  • 2-3S
  • 6V/7.4V,2A

Wires & Connectors

  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Black-16AWG-75mm*1,Red-16AWG-75mm*1
  • Black-16AWG-60mm*3
  • XT60
  • 3.5MM Gold (female)

ESC Programing via

  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Supported
  • Supported
  • Supported
  • Supported
  • Not Supported
  • Shared with Throttle Wire

Data Recording

  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Not Supported
  • Not Supported
  • Not Supported

Firmware

  • Firmware Upgrade
  • Not Supported

Size & Weight

  • Size
  • Weight
  • 33.4*26.8*15.1mm
  • 38.5g( Included wires & connectors)

Applications

  • Motors
  • Vehicles
  • KV Rating/T Count
  • Sensorless / Sensored Brushless Motor (only in sensorless mode)
  • 1/16th、1/18th On-Road & Off-Road

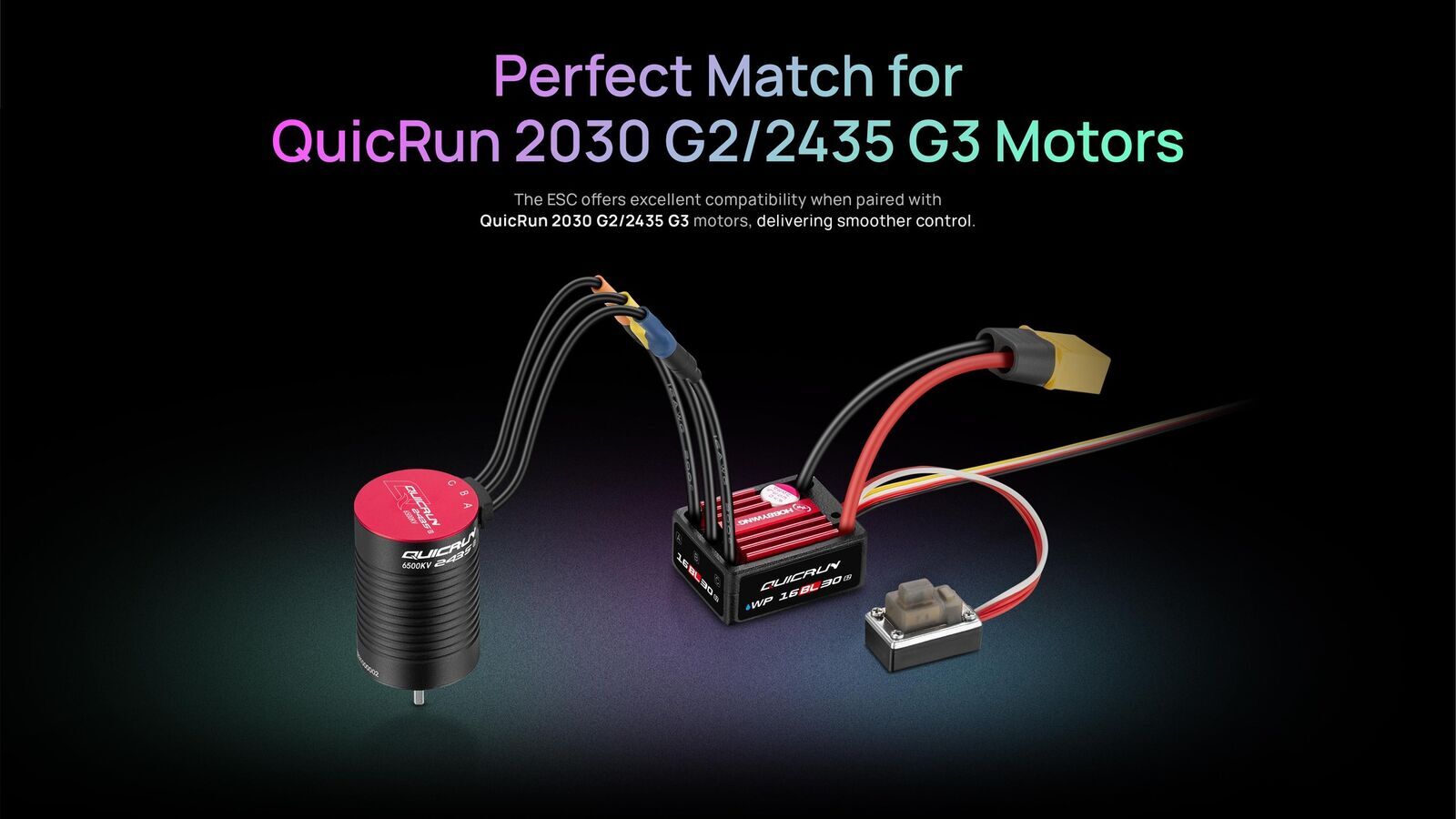

  • QUICRUN 2435 G2

(HW30110001)

SKU HW30110001
Barcode # 6938994413275
Brand HOBBYWING
