Product NameQUICRUN WP 10BL80 Crawler

Product Number

  •
  • 30108002

Type

  • Scale

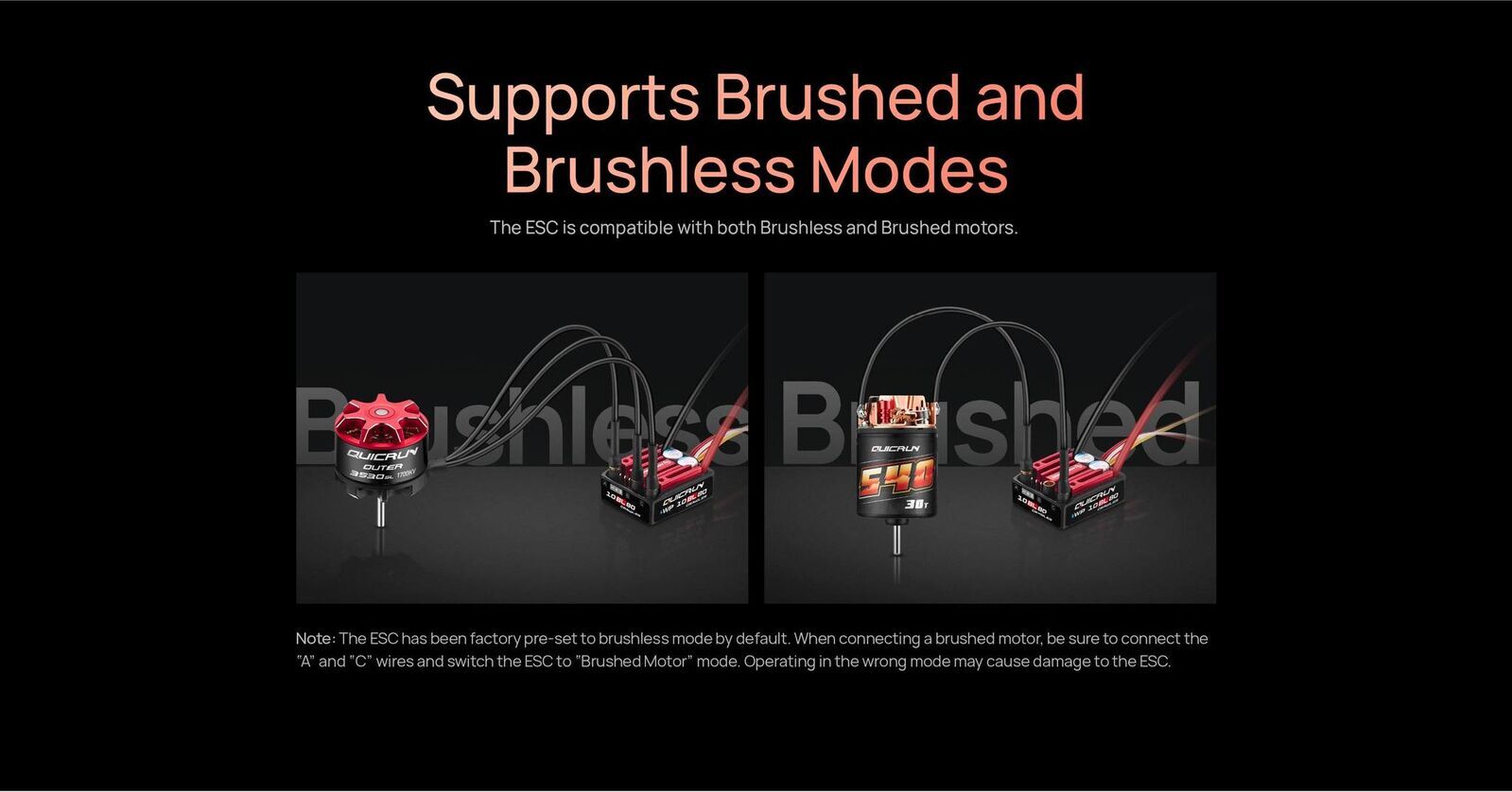

  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/10th
  • Brushless
  • Sensorless
  • Waterproof

Specifications

  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • 80A/240A
  • 2-4S LiPo

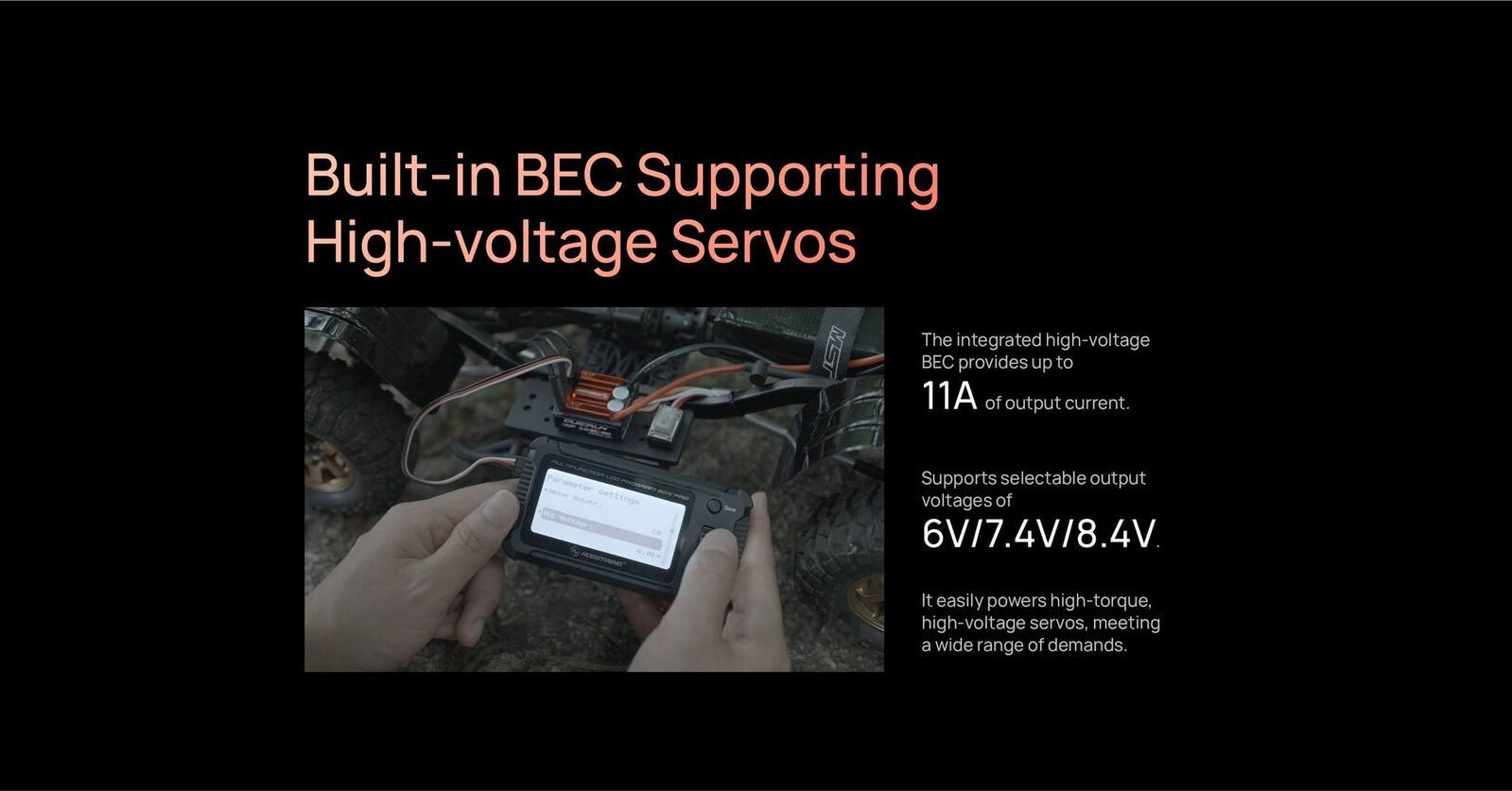

  • 6V/7.4V/8.4V,5A

Wires & Connectors

  • Input Wires
  • Output Wires
  • Input Connectors
  • Output Connectors
  • Black-14AWG-175mm*1,Red-14AWG-175mm*1
  • No
  • XT60
  • 3.5MM Gold (female)

ESC Programing via

  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box
  • LCD PRO
  • OTA Programmer
  • Program Port
  • Supported
  • Supported
  • Supported
  • Supported
  • Not Supported
  • Independent program port

Data Recording

  • Extreme value
  • Real-time Data
  • Historical data (Graph)
  • Not Supported
  • Not Supported
  • Not Supported

Firmware

  • Firmware Upgrade
  • Not Supported

Size & Weight

  • Size
  • Weight

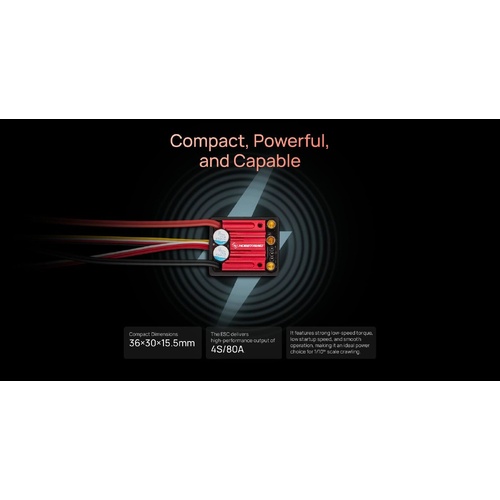

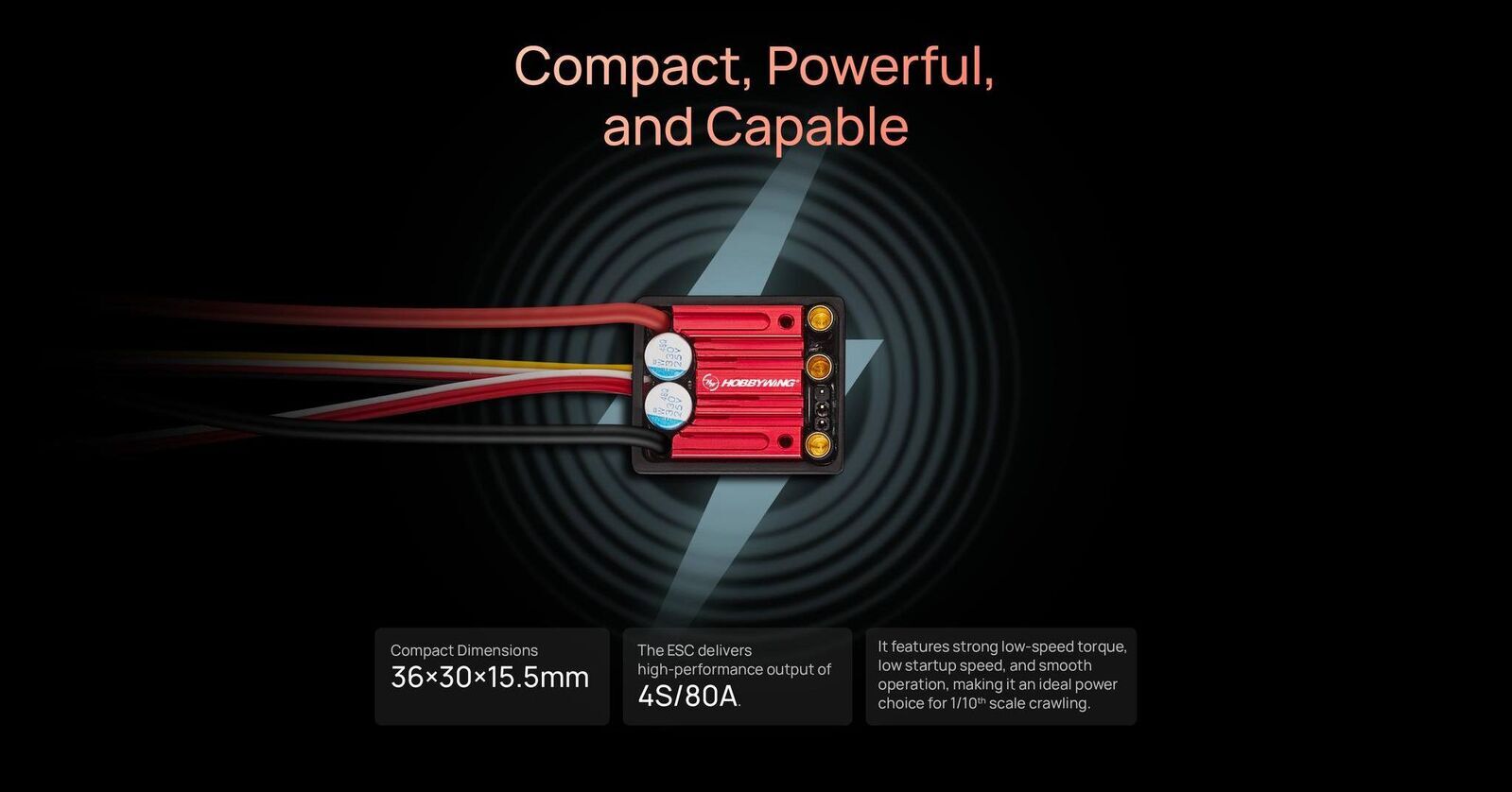

  • 36*30*15.5mm
  • 47.8g( Included wires & connectors)

Applications

  • Motors
  • Vehicles
  • KV Rating/T Count
  • Sensorless / Sensored Brushless Motor
  • 1/10th Crawlers
  • Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors

(HW30108002)

SKU HW30108002
Brand HOBBYWING
