Product Number

  •
  • 30120500

Type

  • Scale
  • Brushed/Brushless
  • Sensored/Sensorless
  • Waterproof
  • 1/10th
  • Brushless
  • Sensored
  • Waterproof

Specifications

  • Cont./Peak Current
  • Input Voltage
  • BEC Output
  • KV
  • Motor Poles
  • 50A/150A

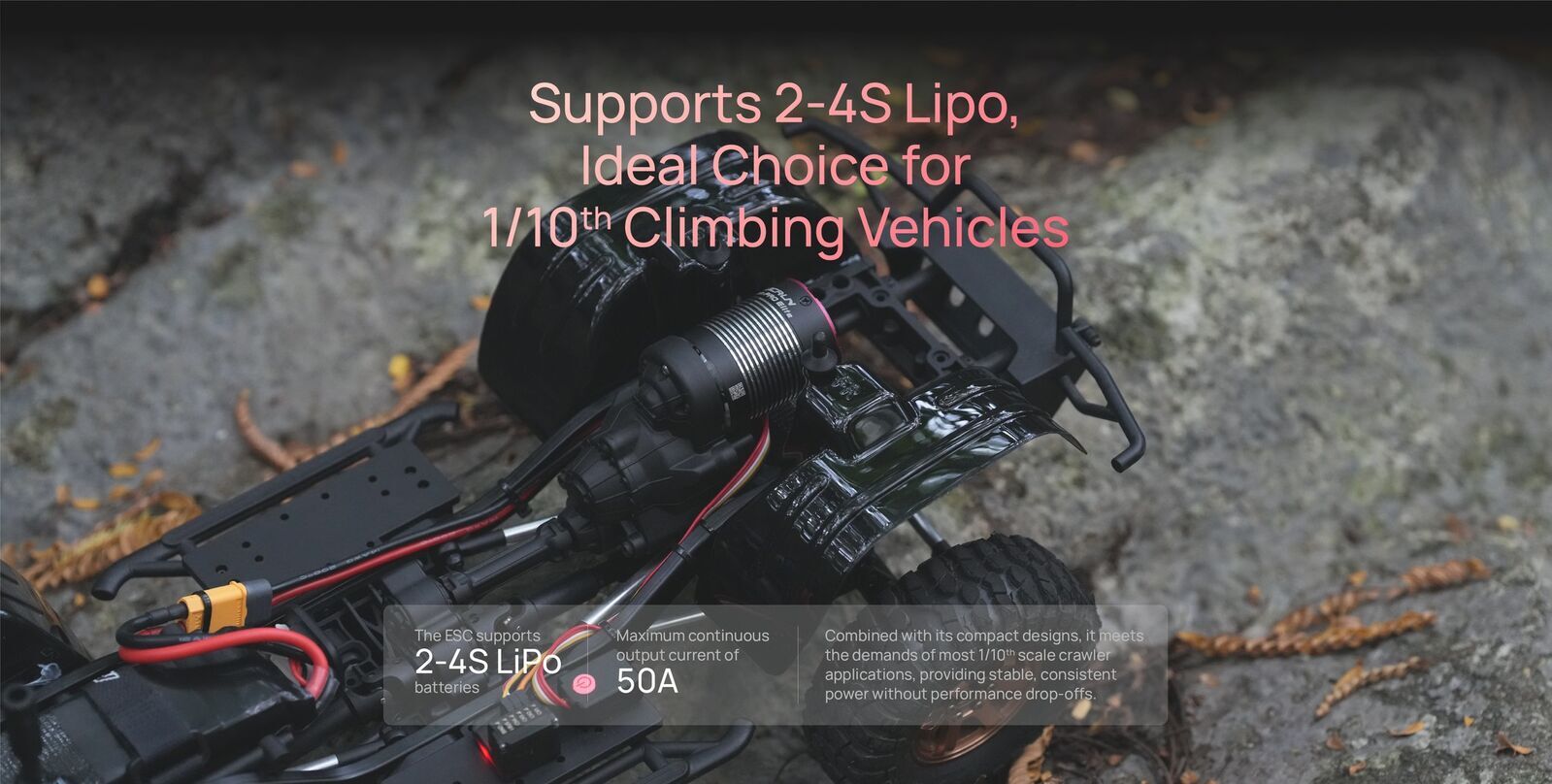

  • 2-4S LiPo,6-12 Cells NiMH
  • 6V/7.4V/8.4 adjustable,continuous current 5A (Switch mode)
  • 2300KV
  • 4

Wires & Connectors

  • Input Wires
  • Input Connectors
  • Black-14AWG-220mm*1 Red-14AWG-220mm*1
  • XT60

ESC Programing via

  • SET Button on ESC
  • LED Program Box
  • LCD G2 Program Box/LCD PRO
  • OTA Programmer
  • Program Port
  • Not Supported
  • Supported
  • Supported
  • Not Supported
  • Independent programming port(switch position)

Firmware

  • Firmware Upgrade
  • Not Supported

Size & Weight

  • Diameter / Length of motor
  • Shaft diameter / exposed shaft length
  • Weight

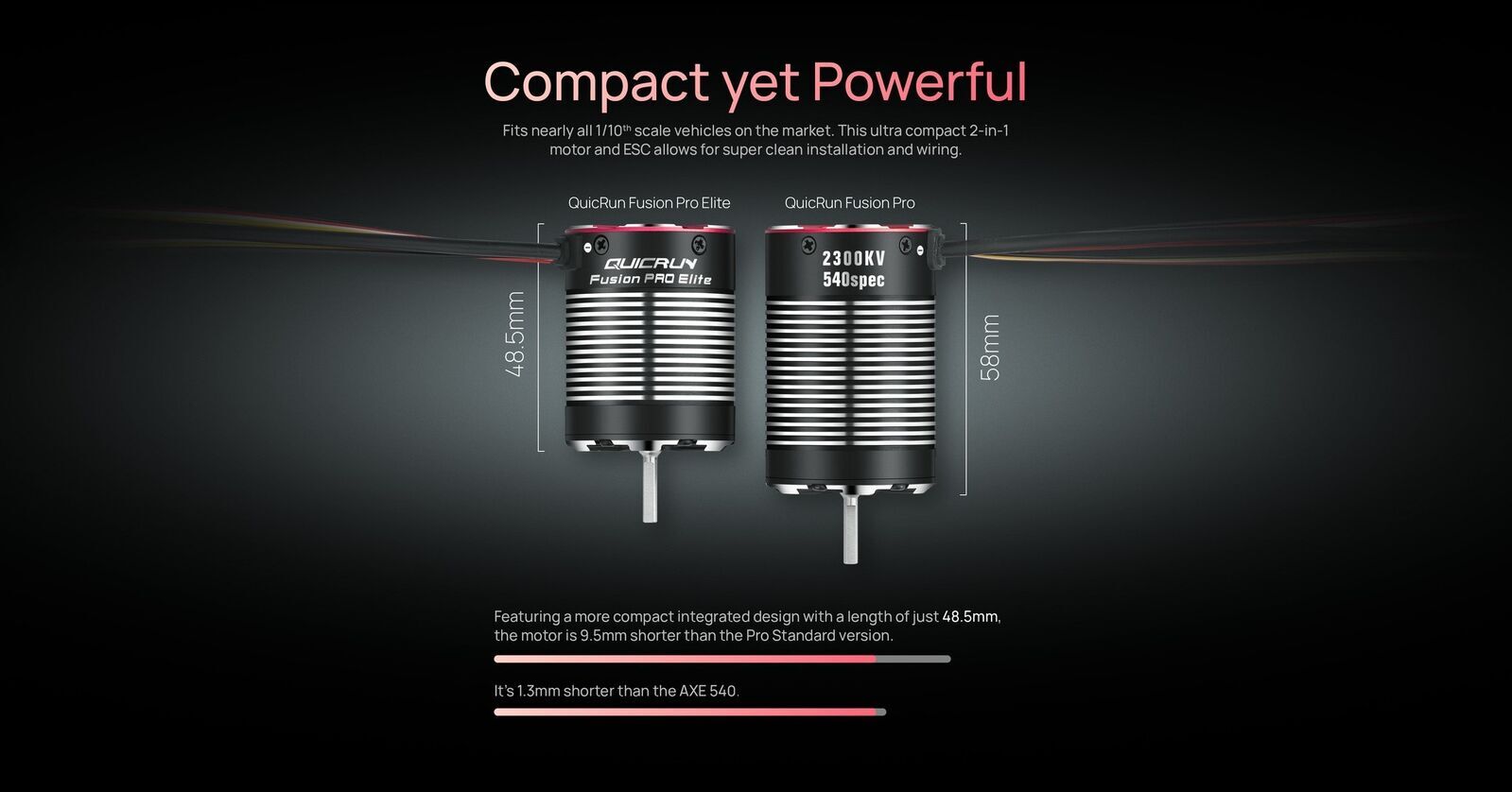

  • 37mm/48.5mm
  • 3.175mm/16mm
  • 178.5g (including wires&connectors)

Applications

  • Vehicles
  • 1/10th Crawlers



(HW30120500)

SKU HW30120500
Brand HOBBYWING
