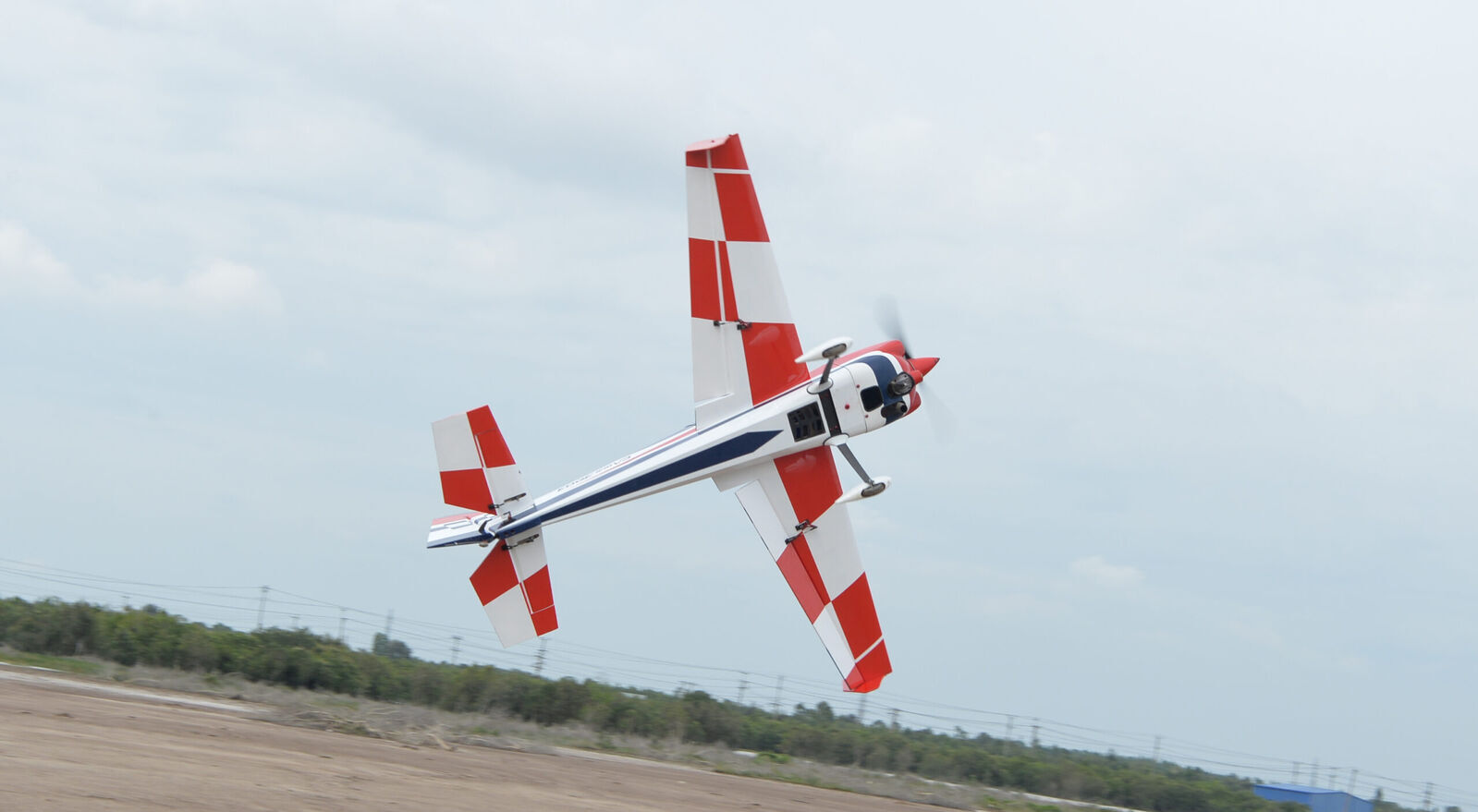

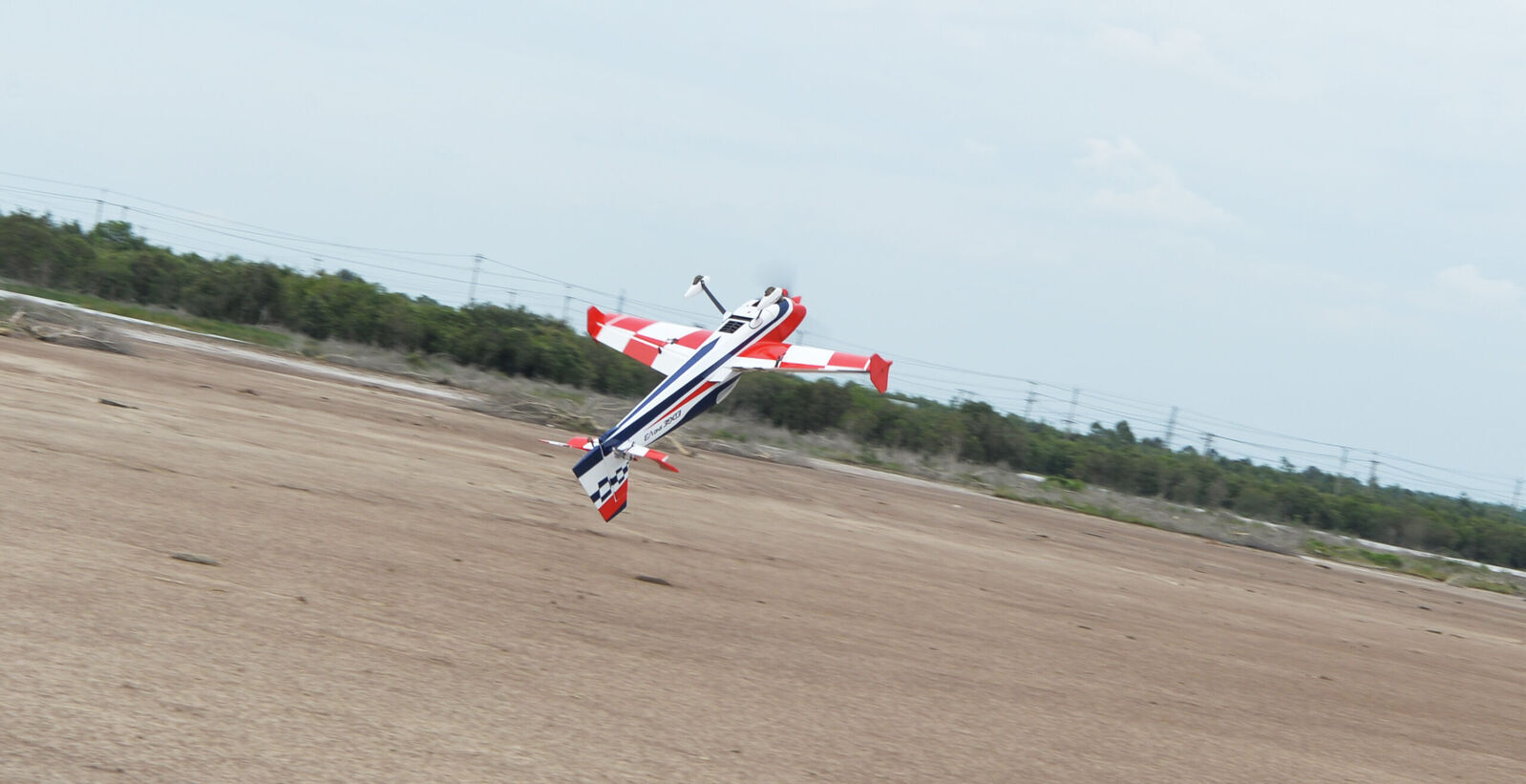

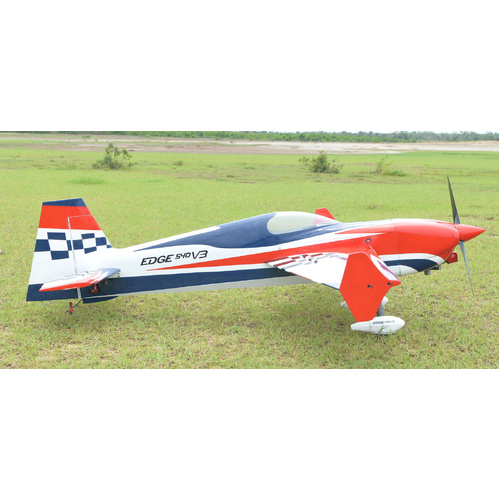

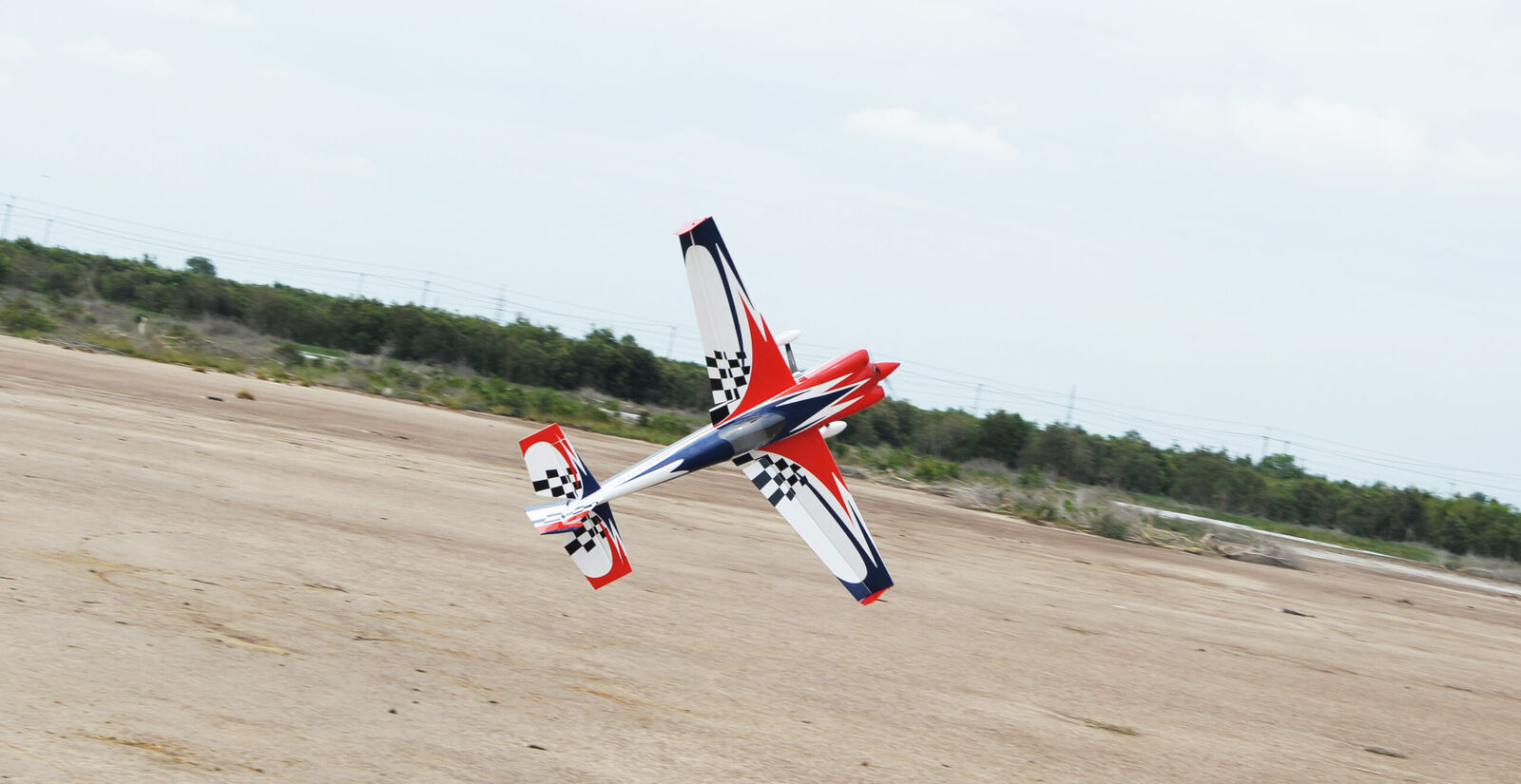

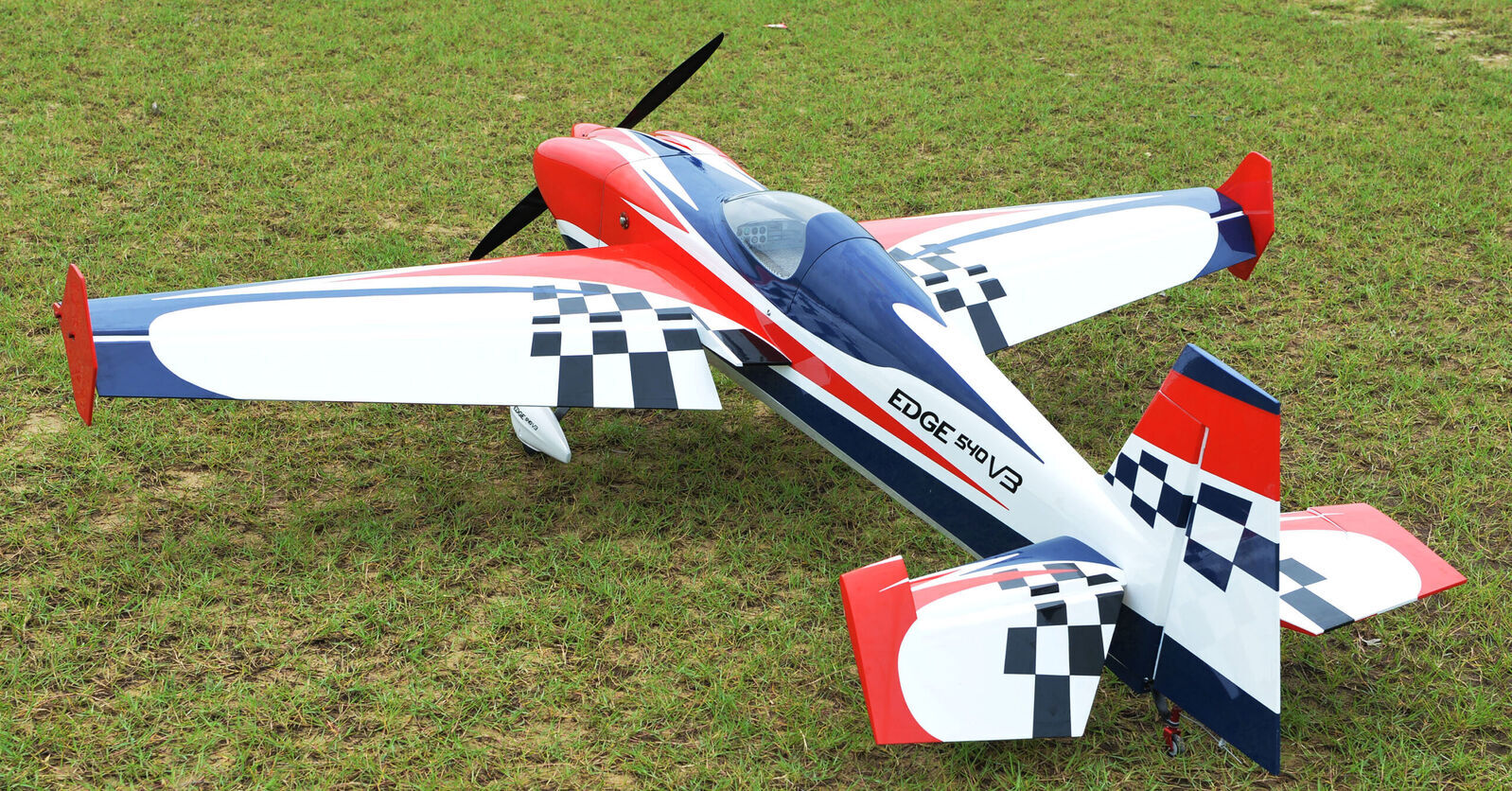

DGE 540 V3 85in 60CC Carbon ARF
Item  code: BH198

PRODUCT DATA:
– Wingspan: 2160mm (85 in)
– Length: 2133mm (84 in)
– Flying weight: 8200gr
–  Wing area: 79.7 dm².
–  Wing loading: 102.8 g/dm².
–  Servo mount: 42mm x 21mm.
–  Wing type: Naca Airfoil.
–  Spinner : 95mm (included).
–  Gear type: Carbon fiber for main gear (included) and Carbon fiber tail gear (included).
– Experience level: Intermediate
–  Covering type: Genuine oracover.
Parts listing required (not included):
–  Radio: 06 channels minimum.
–  Servo: 06 servos (HV High torque steel gear servo).
–  Engine: 60cc gas.
–  Motor: Brushless outrunner 5000 –  6500W, 230KV.
–  Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
–  Motor: RIMFIRE 60cc.
–  Lipo cell: 12 cells 5,000-7,000mAh.
–  Receiver battery: 6-7.4V/ 2200-3200mAh Lipo.
–  ESC: 120A.
FEATURES:
– Equipped with a patented Smart Lock system, allowing wings and stabilizers to be mounted with speed, accuracy, and reliability.
– Pre-installed Hinges, glued, and pinned for maximum strength and reliability.
– Magnetic Canopy Mount. Quick-release canopy system utilizing precision pin magnets, ensuring both security and ease of use.
– Modular Design. Wings and stabilizers are fully removable for transport and storage convenience.
– Cowling is internally mounted, leaving no visible screws on the exterior, with only two accessible screws underneath for convenient installation.
– Open fuselage design allows for simple and efficient canister installation.
– The fuselage and wings are crafted from high-quality wood combined with advanced composite materials, ensuring exceptional rigidity and strength.
– Durable carbon fiber main landing gear included in the kit.
– Lightweight and robust carbon tail gear included in the kit.
– High-performance carbon spinner with aluminum backplate designed for high-speed operation included in the kit.
– High-gloss fiberglass wheel pants included, combining aesthetics with functionality included in the kit.
– High quality accessories included with the kit.
