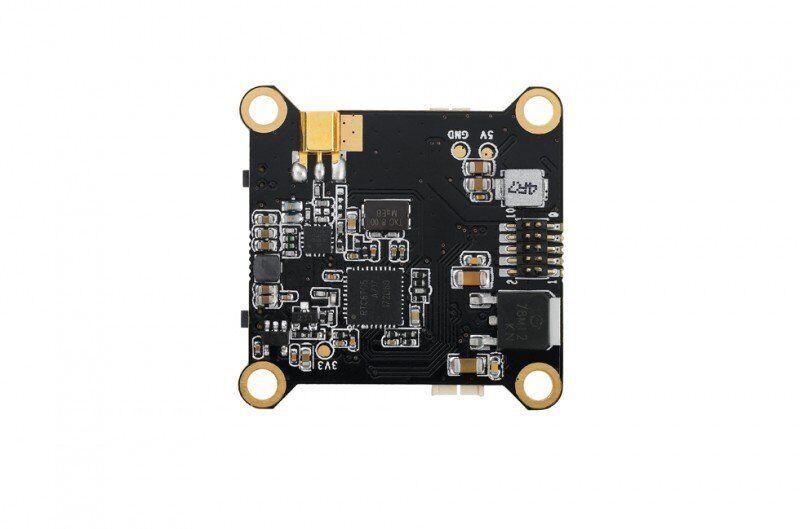

Hobbywing made XRotor Video Transmitter 30505000 (HW-30505000) Drone System

Small Size & Exquisite Design

The STM32F405 MCU which features the powerful computing capability and super-high
running frequency allows the FC to run the PID and gyro with higher frequency.



Voltage-regulating Filter,
Adjustable Transmitting Power &
Adjustable Voltage for Camera

The integrated voltage-regulating filter isolates the interference
of the power system from the VTX to ensure the image stays
clear and stable when the aircraft flies at high speed. The
adjustable transmitting power (0/25mW/200mW) and
stable output power guarantee long transmission distance.
For different applications, the supply voltage for the camera
is adjustable between 5V and 12V.



48 Adjustable Frequencies & Race Bands Supported

The 6 frequency groups with 8 channels in each group form 48 frequencies; the frequency distribution is
applicable to most receiving equipment. Among the frequency groups, group D and group F are
frequency groups for competition; users can use the 8 frequencies in the same group at the same time
without worrying about interference.



Stack-up Installation Supported

When pairing the VTX with the Hobbywing F4 flight controller
and XRotor Micro 40A 4-in-1 ESC, the installation is highly
integrated, simple and convenient, and makes the aircraft
more applicable to the FPV Racing.

(HW30505000)

SKU HW30505000
Brand HOBBYWING
