  • Combines leading edge technology with super high 12 bit (4096) resolution.
  • Ideal for 1/10 on road vehicles, 1/10 scale off road, and helis.
  • Brushless motor provides longer life and cooler operating temps.
  • Full Aluminum Case
  • Unique Steel Gears

Specifications

  • Torque @ 6v - 12.0kg/166.8oz-in
  • Torque @ 7.4v - 15.0kg/208.3oz-in
  • Speed @ 6v - 0.11 sec/60 deg
  • Speed @ 7.4v - 0.085 sec/60 deg
  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
  • Weight: 57.0g

Technical Details

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 2900mA @6.0 V, 3700mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless

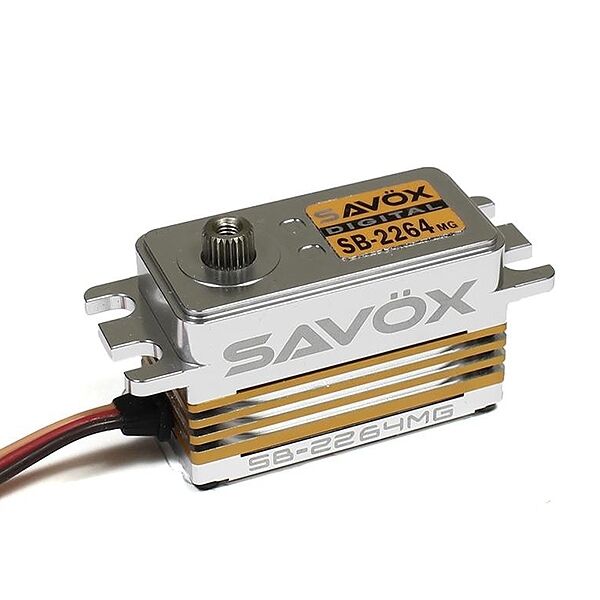

(SAV-SB2264MG)

SKU SAV-SB2264MG
Brand SAVOX
